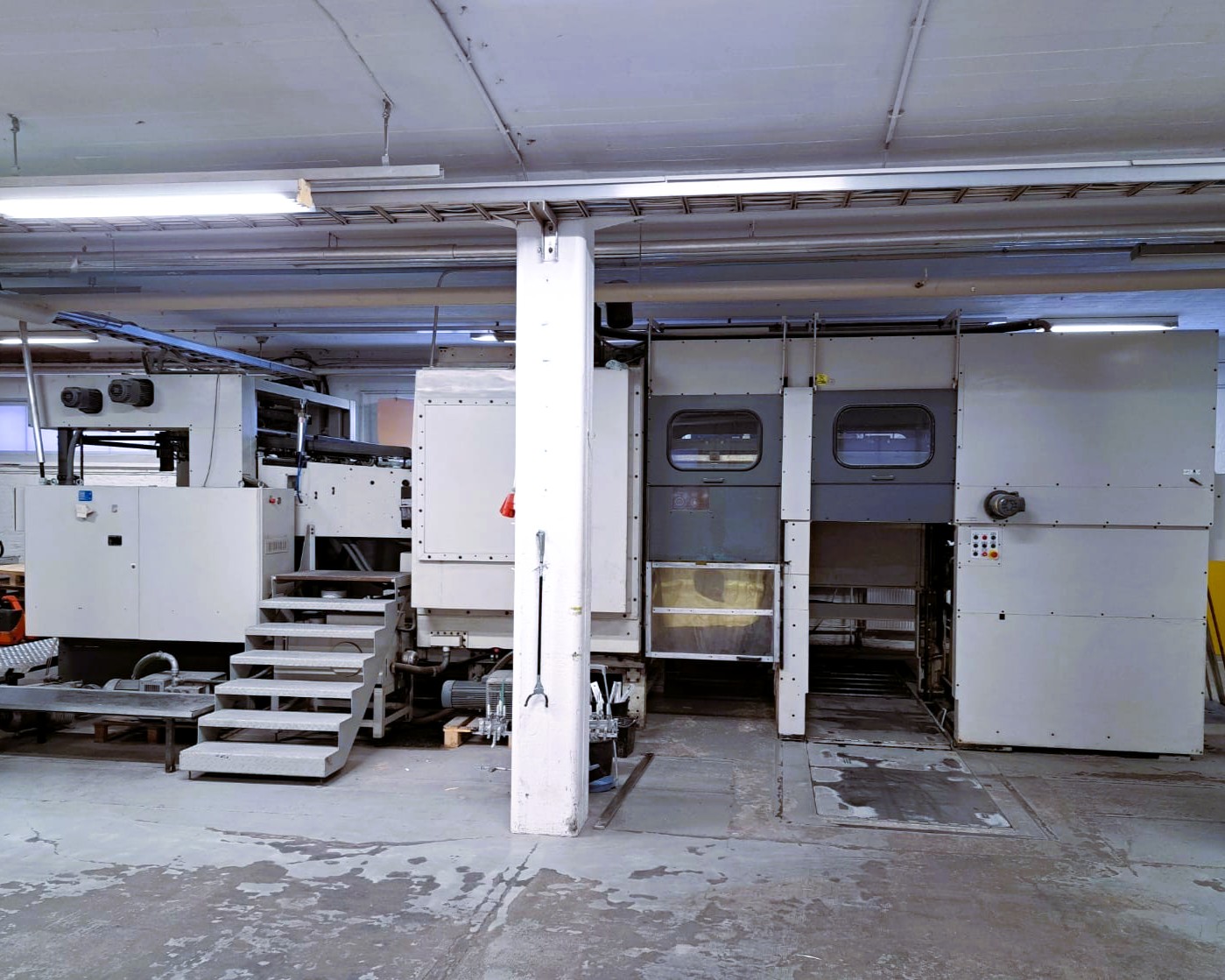

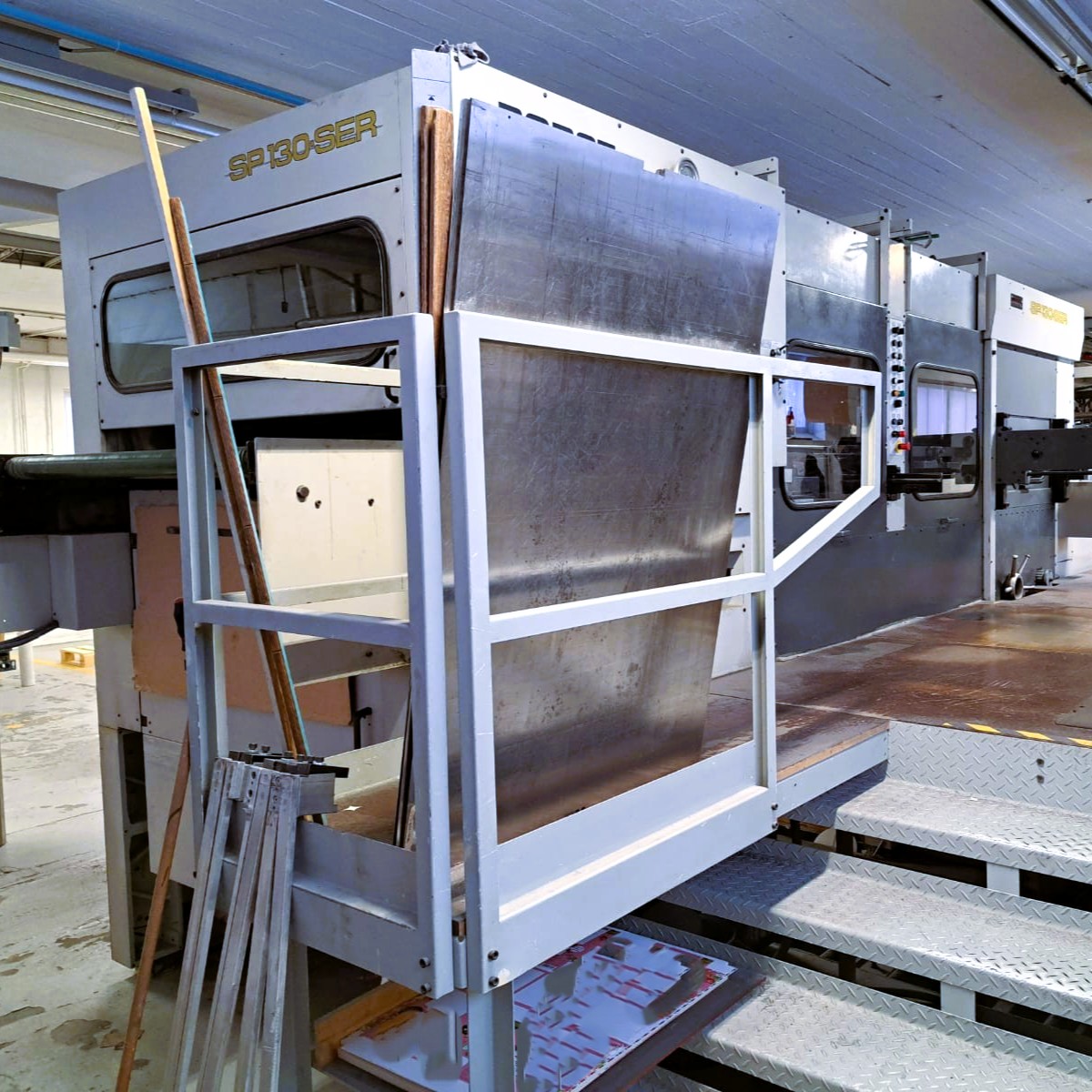

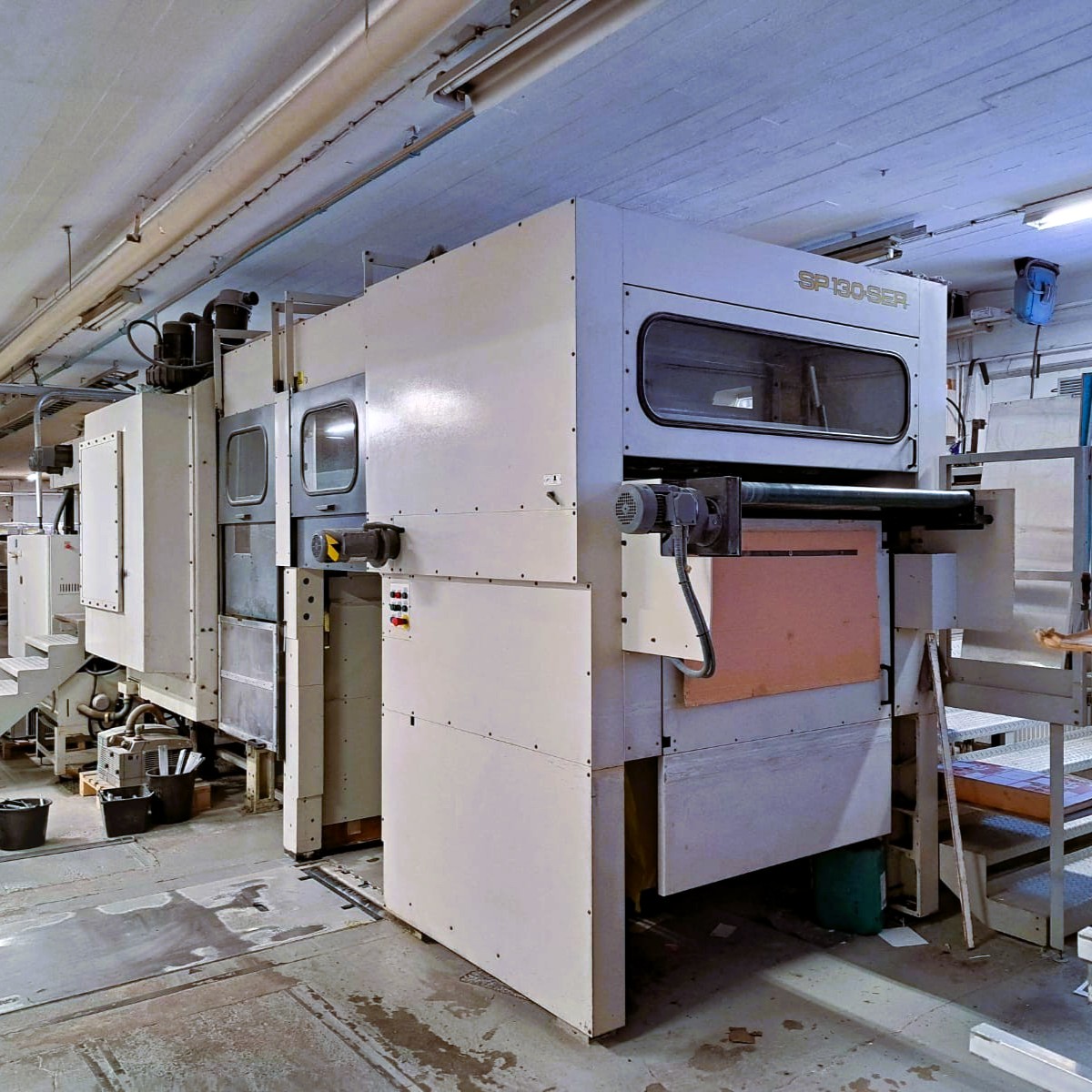

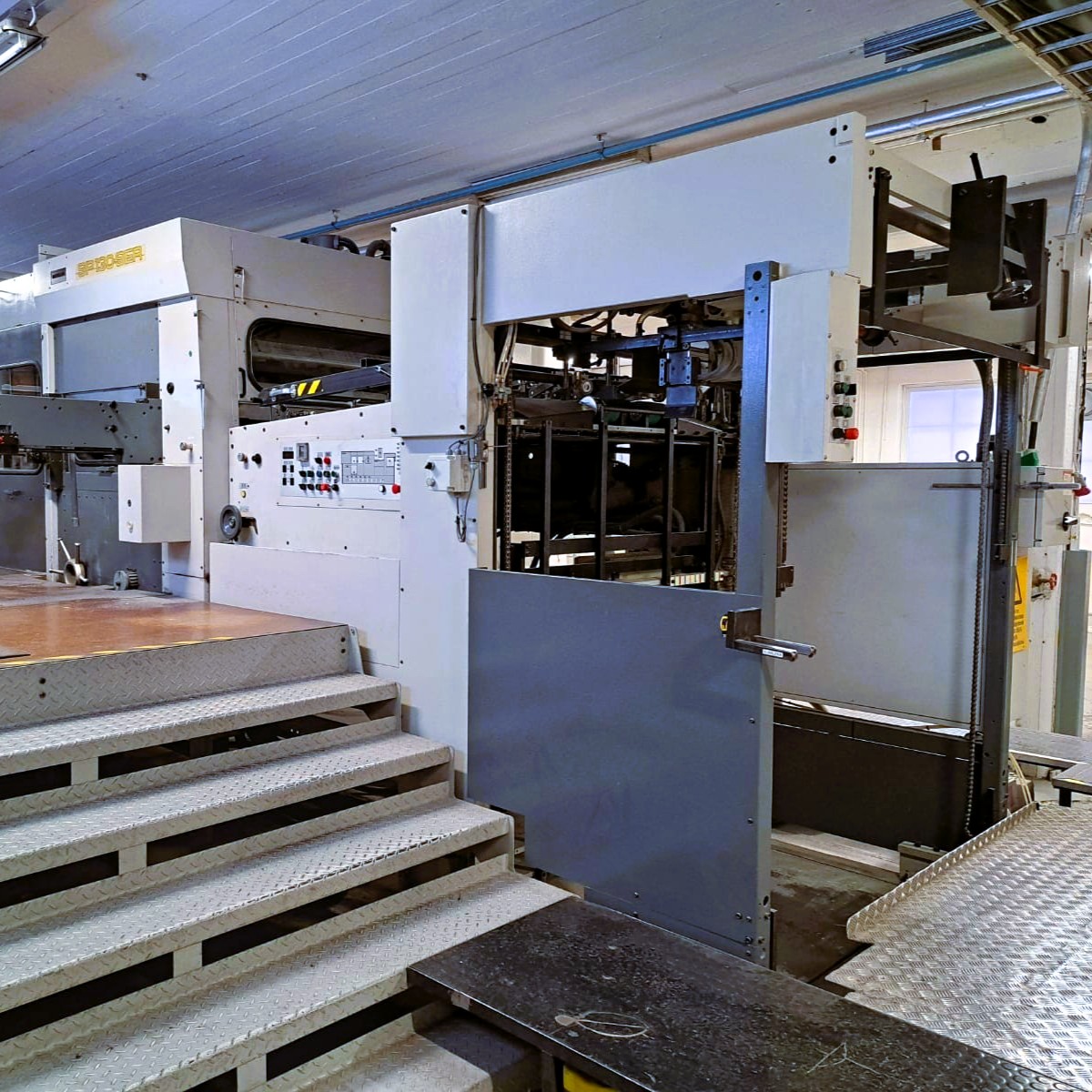

Die-cutting machine Bobst Autoplatine SP 130-SER

Bobst Autoplatine SP 130-SER is a large-scale flatbed die-cutting machine specially designed for efficient die-cutting, creasing and embossing of cardboard and corrugated board

Bobst Autoplatine SP 130-SER is a special model designed for the needs of large-scale industry. It combines traditional die-cutting and chip removal with automatic blanking, which allows the finished blanks to be stacked directly on pallets.

Bobst Autoplatine SP 130-SER model features:
The SER configuration (Stripping, Embossing, Blanking) is optimized especially for high volumes and automated production lines. Blanking unit – ideal for high-volume packaging lines. The fully automatic blanking system separates the punched products from each other and stacks them into clean stacks. This eliminates the need for manual separation after production. Stripping unit: Automatically removes waste (internal and edge waste) before blank separation. Centerline system: Standardized tool mounting that ensures that the punching and blanking tools are in perfect alignment with each other.

Machine is ideal for the following applications:
– Pharmaceutical and cosmetic packaging: Requires precise blank separation and a clean finish.
– Food packaging: Large series where a high degree of automation is required.
– Box industry: Where the die-cut blanks are to be transferred directly to the gluing machine without intermediate steps.

Description:

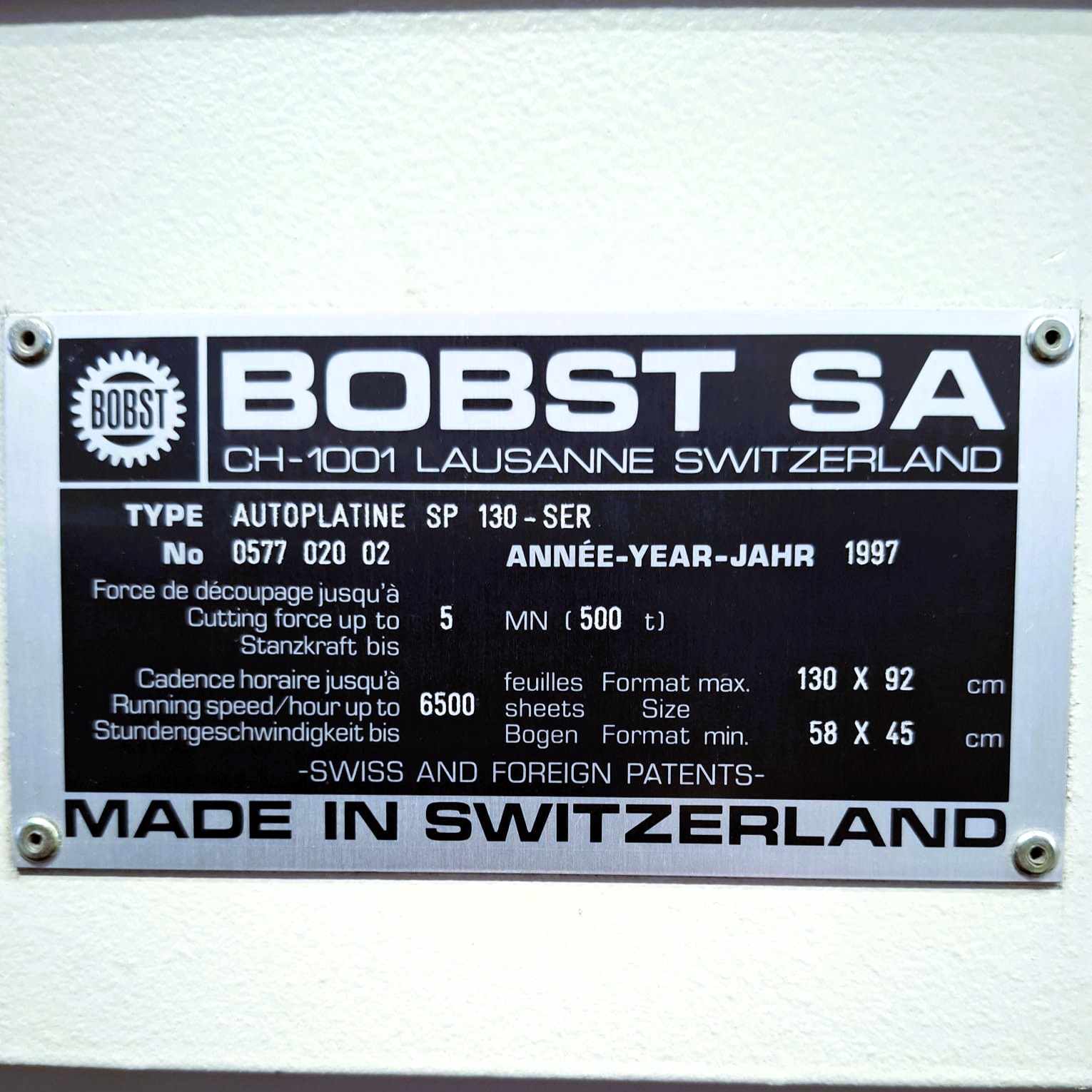

– S/N: 057702002
– Year: 1997
– Mileage: 60.098 hours
– Very good condition
– Location: Finland, Europe
– Availability: Immediately

Equipment:
– Centerline
– Die-cutting section (cutting plate 5 mm, 1 x tool chase)
– Stripping section (5 x stripping chase)

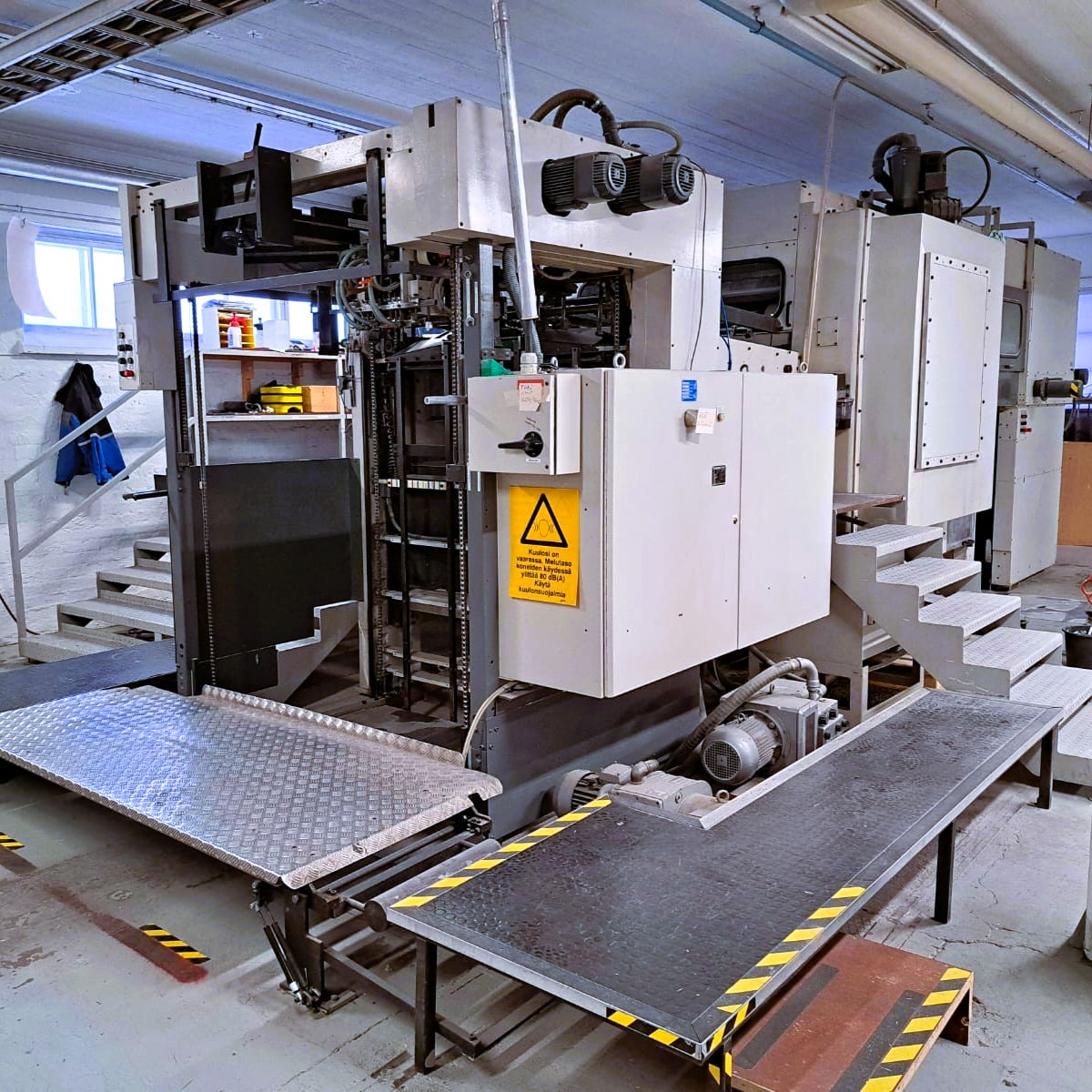

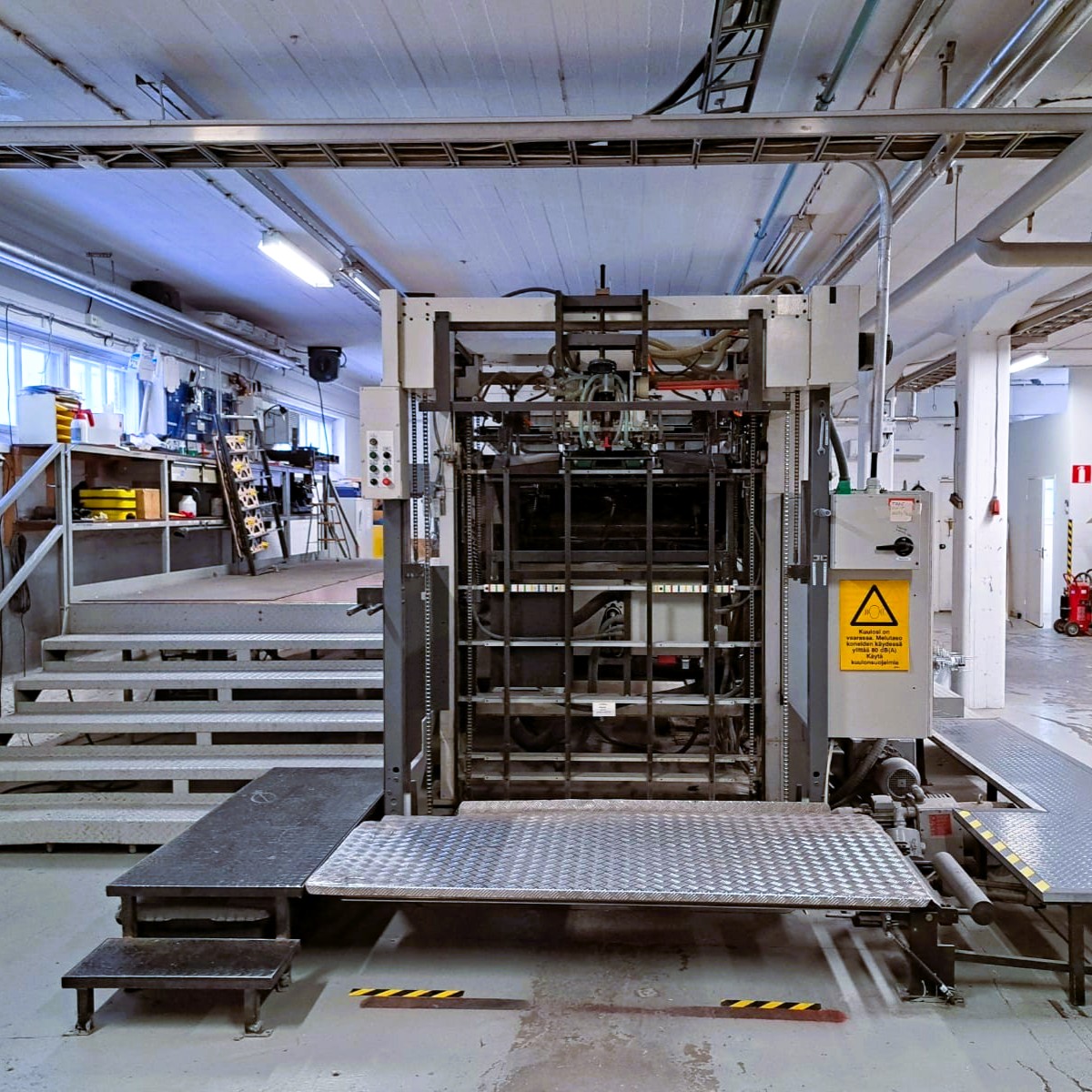

– Blanking unit (SER configuration)

Technical data:
– Sheet size: max. 1300 x 920 mm, min. 580 x 450 mm
– Material thickness: Paper and cardboard 120 – 2.000 g/m², corrugated cardboard max. 4 mm.
– Speed: 6.500 sheet/h
– Pressing force: 500 tons.
– Machine dimensions: L: 9,5 m / W: 2,9 m (with bridge 5,9 m) / H: 2,9 m
– Weight: approx. 33.000 kg

Service history:
Last Bobst thorough inspection and maintenance done 2019. Recent major maintenance (2024-2025) including:
– submersible / machine transmission chain (power transmission) renewed
– submersible suction head maintained, and bearings checked / replaced
– contactors replaced in electrical cabinet
– piece counter memory batteries replaced
– quide plate inspection and quide plate parts renewed
