Foliant Gemini Compressor 400A

Fully-automatic High Pressure Laminating Machine

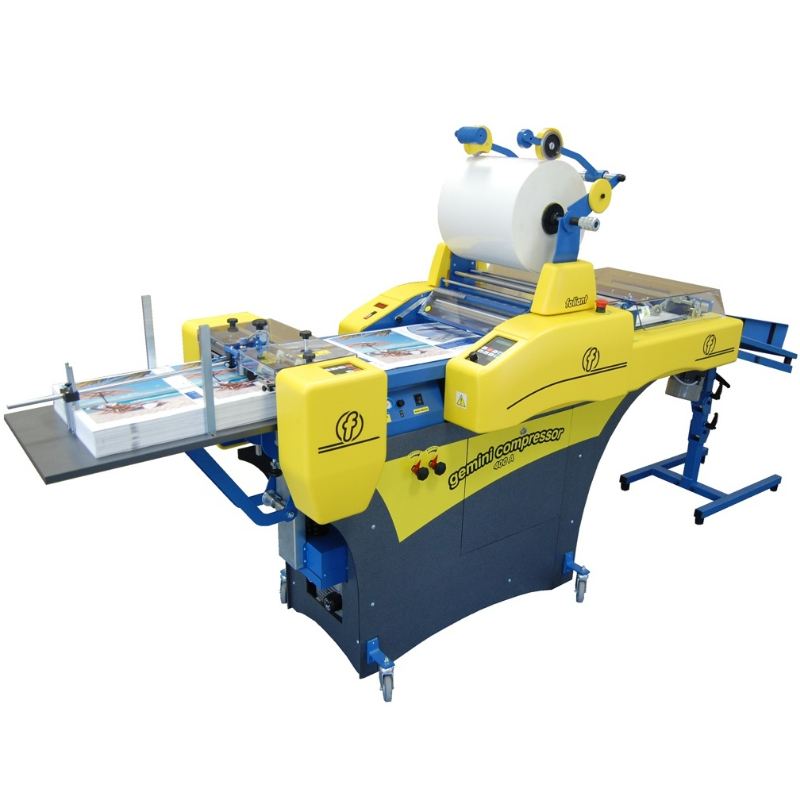

The Foliant Gemini C 400A is a fully-automatic high pressure laminating machine (laminator and separator) developed for digital output. The machine is equipped with a pneumatic pressure system of laminating rollers with an easy thrust control. A small compressor is integrated inside the machine frame. The machine has been designed with an operating width of 14.96” (380 mm) and it represents an ideal choice for professional single-side lamination in digital shops and all other print shops, printing and processing sheets up to B3+ size (the largest format is 14.96” x 22.83” (38 cm x 58 cm), with a special option even 14.96” x 25.98” (38 x 66 cm). Maximum speed is up to 15 meters/min.

The machine’s main feature is a pneumatic pressure system in a heavy duty mechanism enabling to achieve a very high working pressure, one single phase 220 – 240 V supply cable, a small integrated compressor inside the machine frame (i.e. no external source of pressured air is required), a nice design and easy machine operation. The machine is supplied with a modular stand covered with designed side panels as a standard accessory. An RU 400 Reception Unit and/or a Jogger 400 for storing the laminated sheets can be supplied as an option.

Advantages at a Glance
* Easy operation
* Equipped with vacuum belt rising pile front separation automatic sheet feeder
* Film is mounted on an easy handle shaft with a film tension control breaker
* Film holder unit is equipped with a trim slitter and perforation wheel
* Pressure is pneumatically adjustable
* De-curl blade for offset printed sheets
* De-curl roller for digitally printed sheets
* Equipped with a synchronized feeding conveyor and adjustable side guide for easy loading
* Belt separator is equipped with a separating roller and deflection wheel
* Optional reception unit, jogger and film supply roll shaft available
